Octopusscan OS09D1 Sewer Inspection Camera

Octopusscan OS09D1 Sewer Inspection Camera

Name: Octopusscan OS09D1 Sewer Inspection Camera
Brand: Octopusscan
SKU: OSL09D1-20M-DVR-5C-ZK-32G-Y
Price: 439.0 USD
Availability: InStock
Rating: 5.0 (21 reviews)

SKU OSL09D1-20M-DVR-5C-ZK-32G-Y

Save 66%

$1,299.99

$999.99 - $1,299.99

$1,299.99

$439.00

$439.00 - $599.00

$439.00

Availability:

in stock, ready to be shipped

Availability:

in stock, ready to be shipped

Availability:

in stock, ready to be shipped

Availability:

in stock, ready to be shipped

Availability:

in stock, ready to be shipped

Availability:

in stock, ready to be shipped

Availability:

in stock, ready to be shipped

Availability:

in stock, ready to be shipped

Availability:

in stock, ready to be shipped

Quantity

PRODUCT DESCRIPTION

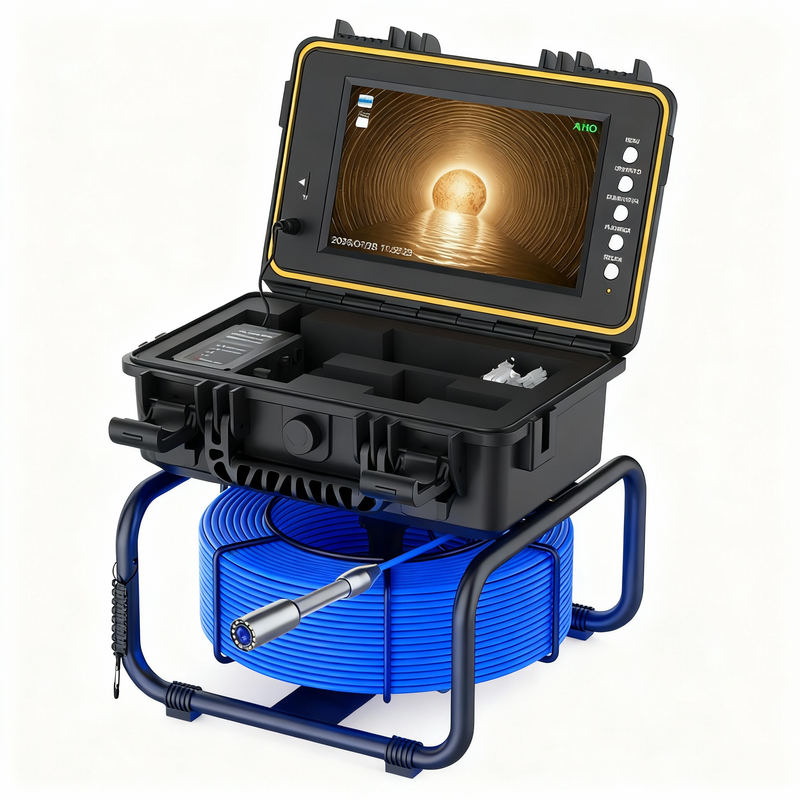

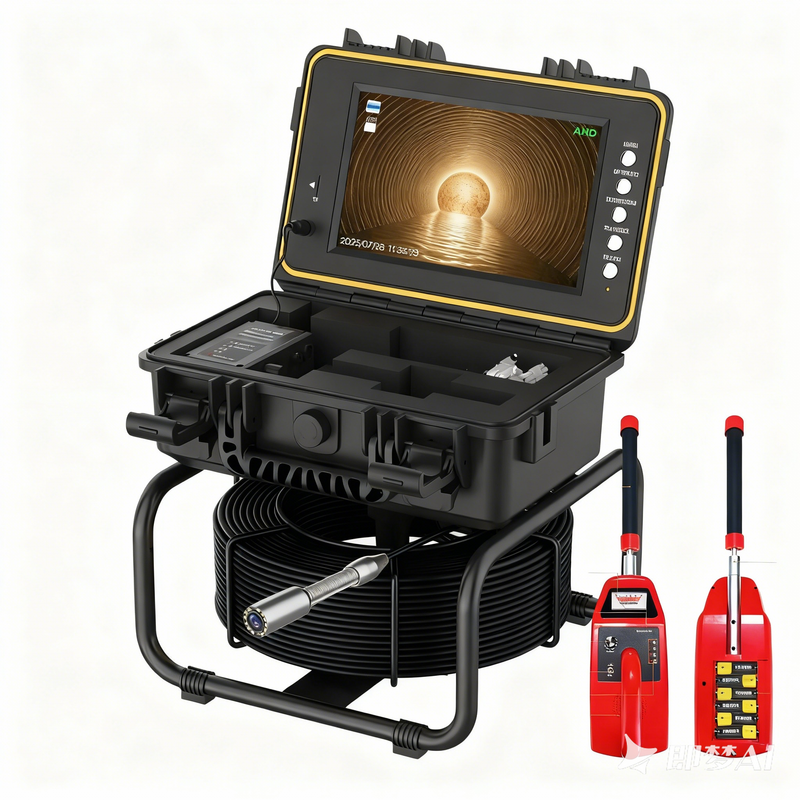

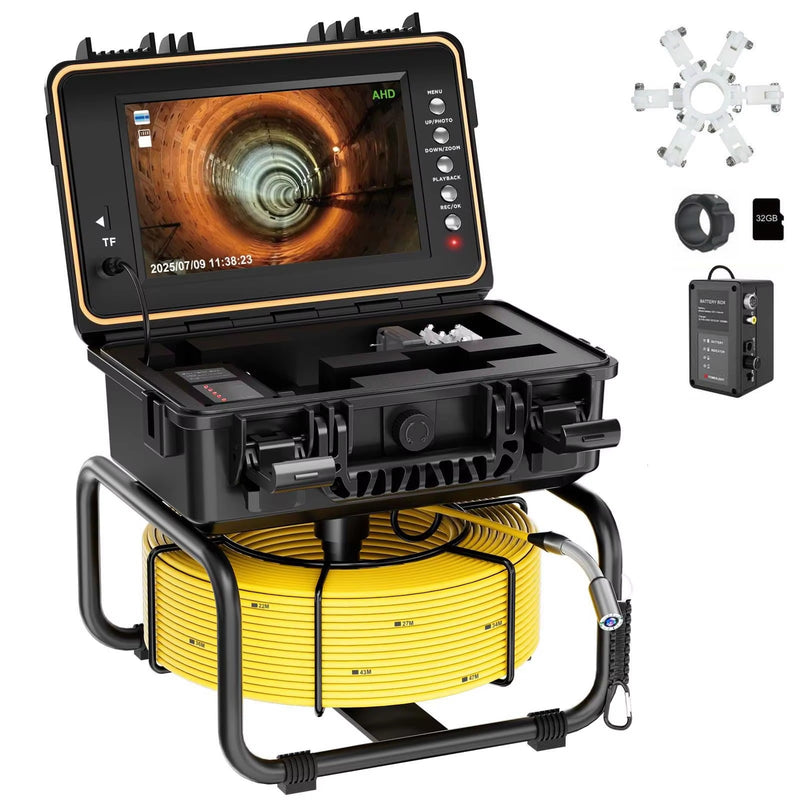

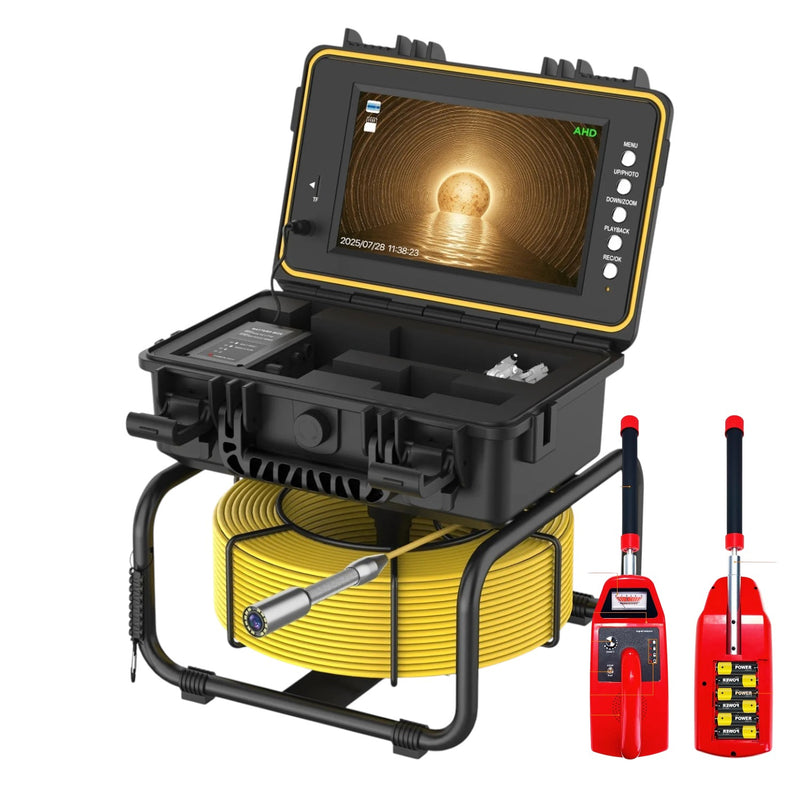

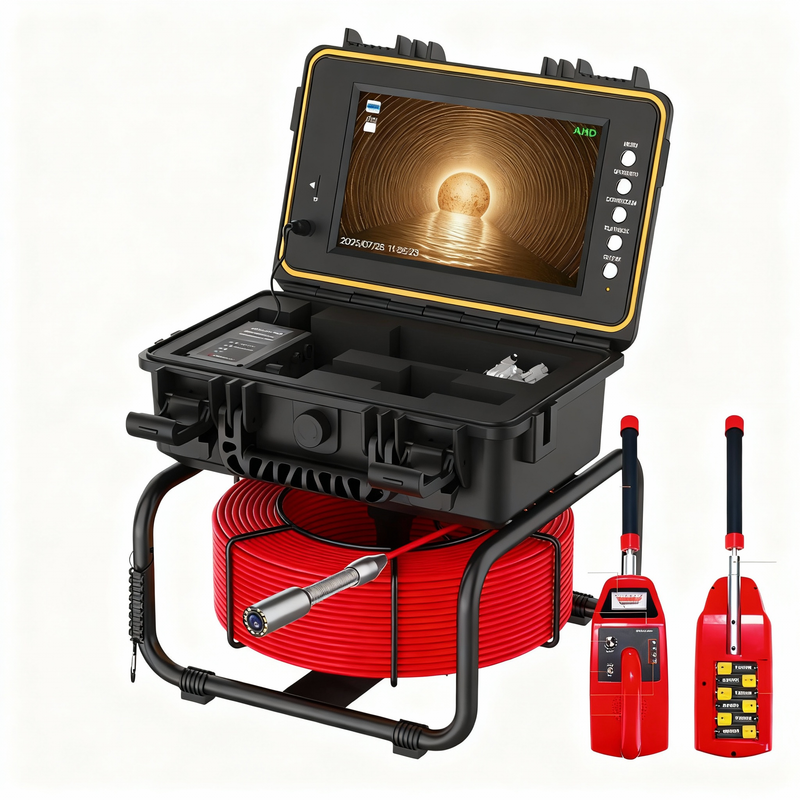

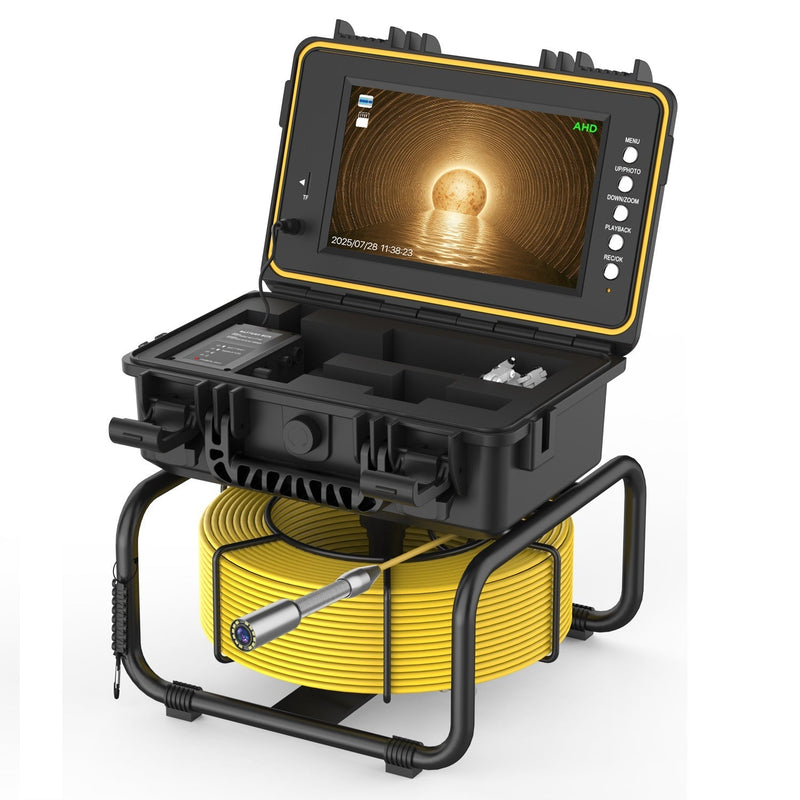

The Octopusscan OS09D1 Sewer Inspection Camera is a professional Pipe Inspection Camera designed for plumbers who need clear visuals and accurate underground locating. It features a 9″ daylight-readable IPS screen, a self-leveling camera head, and a built-in 512Hz sonde locator for fast and precise blockage detection.

The 100ft waterproof push cable easily navigates drains, sewer lines, and tight pipe systems, making it a reliable Drain Camera for residential and commercial jobs. With 12 adjustable LEDs and a 140° wide-angle lens, the system delivers sharp, detailed images even in dark, muddy, or submerged environments.

Ideal for drain cleaning, pipe repair, plumbing inspections, and general maintenance, the L09D1 ships from a U.S. warehouse and includes full warranty coverage plus replacement parts support.

SPECIFICATION

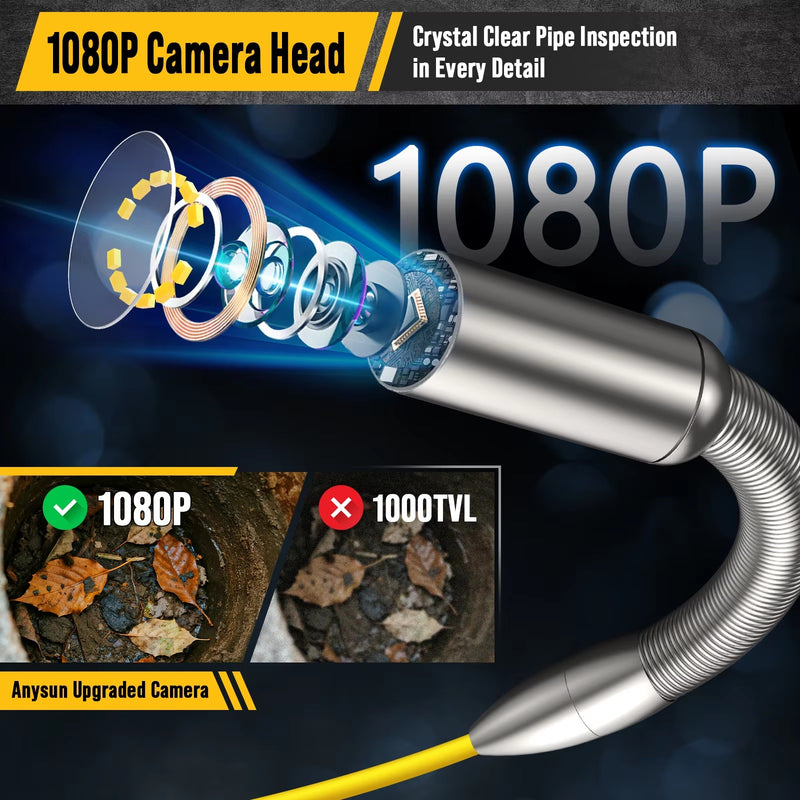

Camera Head

Camera Size: 23mm x 120mm
LED Lights: 12pcs White LED
View Angle: 140 degrees
Material: 304# Stainless Steel
Waterproof Rating: IP68
Sensor: CMOS
Resolution: 1000TVL/1080P

Monitor Display

Display Size: 9-inch
Display Resolution: 1024(H) * 600(V)
Camera Image: Color
Display Operation: Press Buttons
Video Format: AVI
Photo Format: JPG
Memory Card: Supports up to 256GB SD Card (32GB SD Card Included)"

Cable Wheel

Cable Diameter: 5mm
Cable Material: Fiberglass

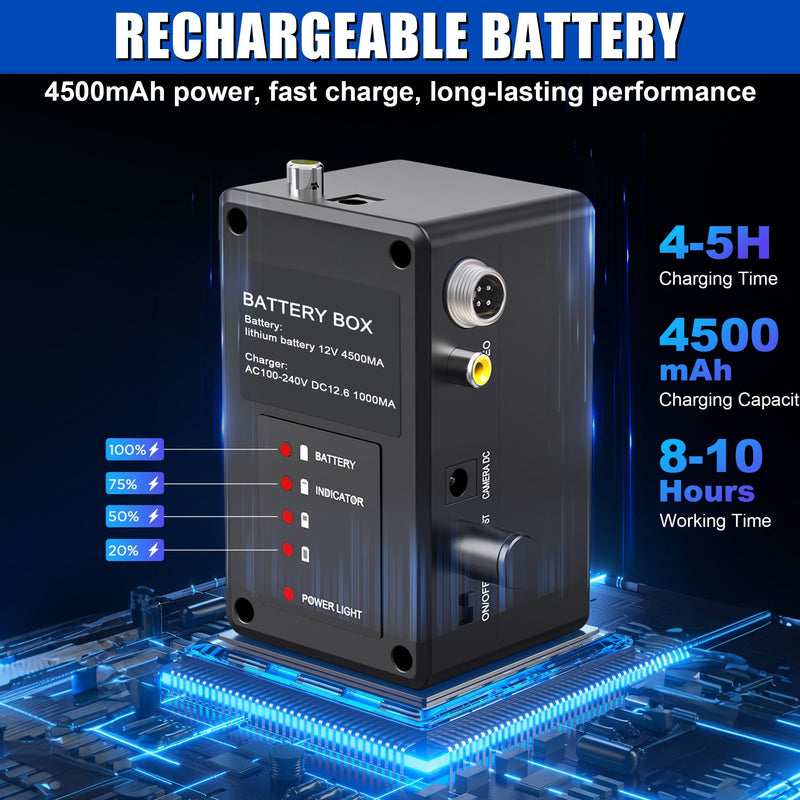

Battery

Charger Input: AC 100-240V 50/60Hz 0.6A Max
Charger Output: 5.0V 2000MA
Battery Capacity: Li-ion 4500mAh
Charging Time: 4-5 hours
Working Time: 8-10 hours
Charge Status: Power Adapter Red LED on
Full Charge: Power Adapter Green LED on
Operating Temperature: -20°C-60°C
Storage Temperature: -30°C-60°C

ADDITIONAL FEATURES

Integrated camera system — camera, Auto-Reel Storage System, and monitor in one all-in-one package.
Rugged reel with locking strap and telescopic pull handle.
9-inch LCD color monitor mounted on a flexible gooseneck for easy viewing.
5× digital zoom and self-leveling camera automatically keep the image upright.
Built-in DVR with distance counter and timestamp overlay.

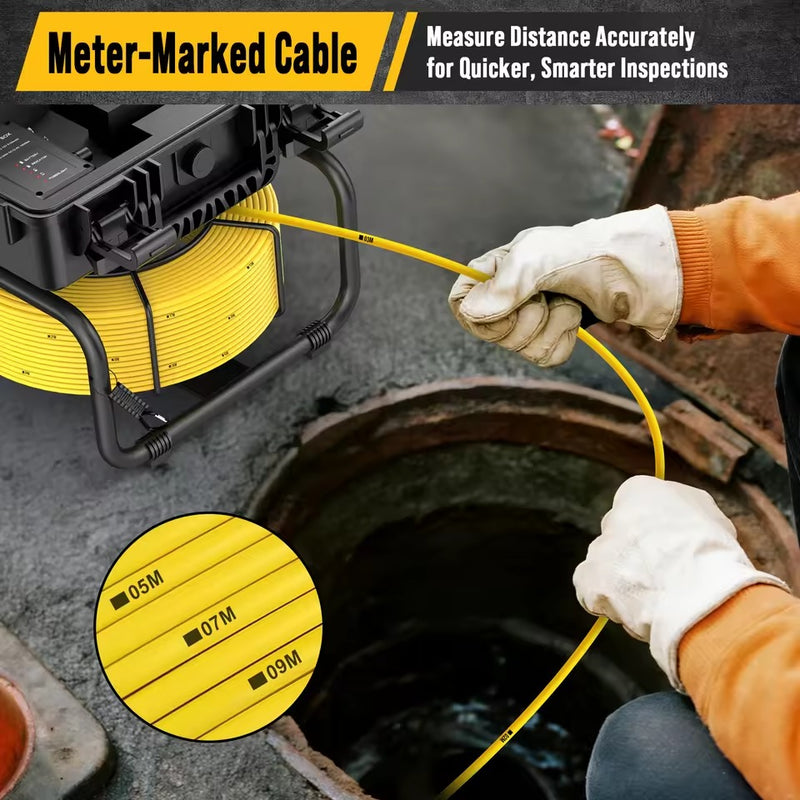

Compact reel with 100 /165ft × 5 mm fiberglass push cable, ideal for inspecting 1"- 4" inch drain and sewer lines. Perfect for household and indoor drain inspections.
Heavy-duty frame can operate either vertically or horizontally.
Equipped with LED brightness control and both AC/DC power cords.
Video output port allows external recording.
TF card slot enables video recording and easy sharing with clients.
Built-in 512 Hz transmitter for quick and accurate camera locating.

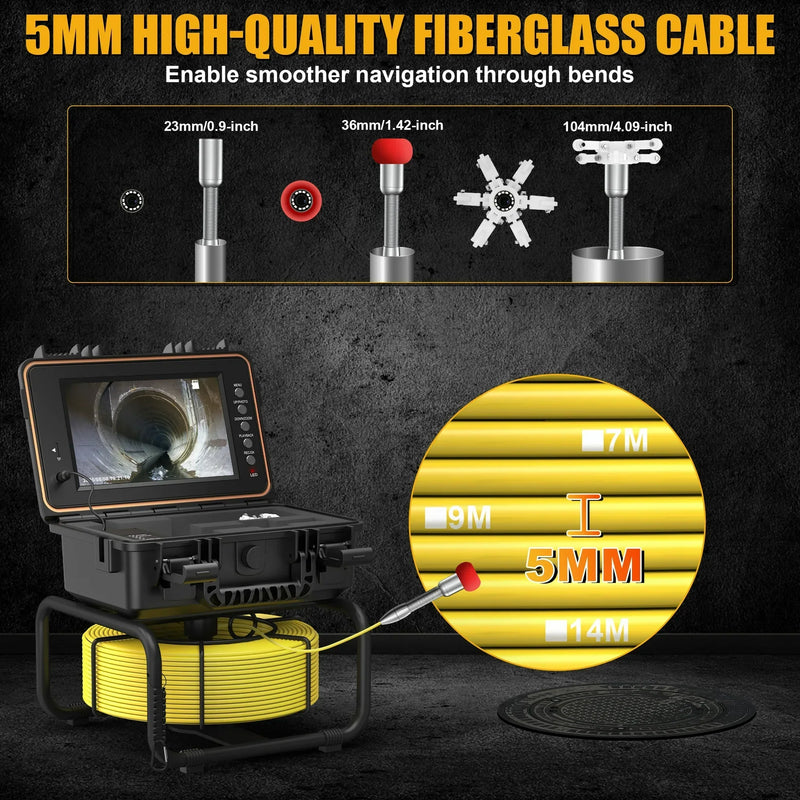

Fiberglass push cable features a 5 mm diameter for durability and flexibility.

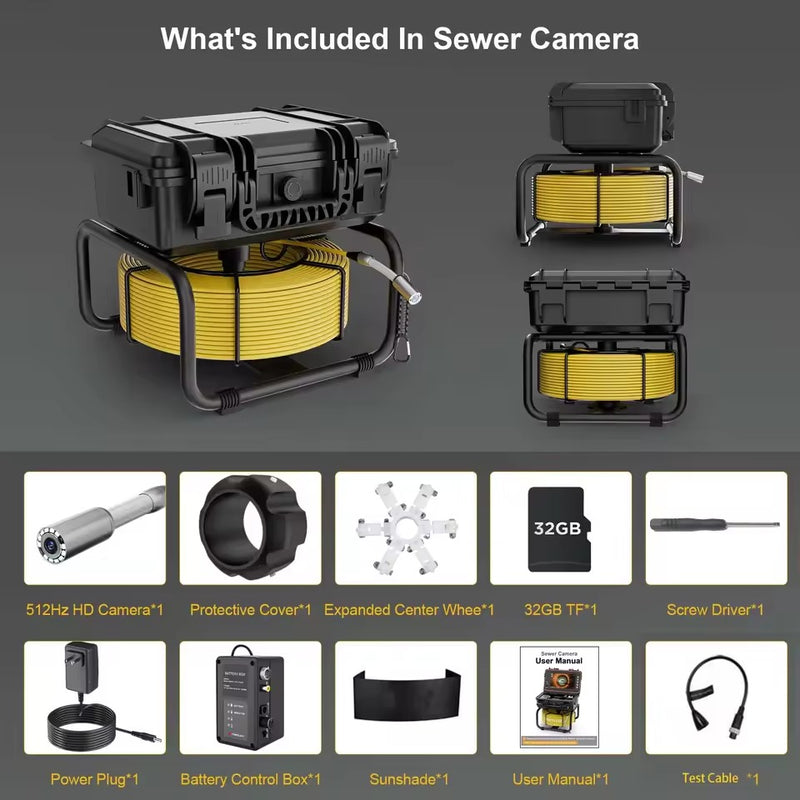

INCLUDES

Cable & Reel
Power Plug
Protective Case
Moniton
Bag
Adjustable Skid
Camera Head
Monitor Stand

WARRANTY

To receive more information about our warranty policies, get in touch and we are happy to send you our different offerings. Contact us here.

Product Manual

Click here to view the full product manual.

Get In Touch

We'd love to hear from you. Fill out the form below and we'll get back to you as soon as possible.

First Name

Last Name

Email Address

Which of the following best describes how you use tools?

Professional contractor

DIY enthusiast

Business owner

Other

I agree to receive marketing communications and updates

I have read and agree to the Privacy Policy

By submitting this form, you agree to our terms and conditions. We respect your privacy and will never share your information with third parties.

Octopusscan Sewer & Drain Cameras — Quick Selection Guide
Application Need	Recommended Model	Key Advantages
Indoor small pipes / tight bends Compact & portable use	L09D1 / L09D2	5 mm push rod, 9" lightweight, self-leveling; ideal for Ø40–110 mm lines.
Home inspection + near-end locating Residential service lines	7DVE/7DA	100 ft cable + 512 Hz locator + DVR; covers Ø50–150 mm pipes.
Building mains / outdoor short runs Commercial & municipal branches	10DZ	10" large screen + distance counter; ideal for Ø75–200 mm mains.
Long-distance / complex mains Professional inspection & deep runs	10DX1	264 ft reach, pro-grade components; supports Ø100–300 mm and complex routing.

Choose your Model
	7DA	7DVE	10DZ	L09D1	L09D2	10DX1
Product Image
Price	From $835	From $855	From $1499	From $799	From $899	From $1399
Screen Size	7 inch	7 inch	10 inch	9 inch	9 inch	10 inch
DVR	✔	✔	✔	✔	✔	✔
Camera probe diameter	23mm × 120mm	23mm × 120mm	23mm × 120mm	23mm × 120mm	23mm × 120mm	23mm × 120mm
Camera probe	30M	30M	60M~75M	30M~50M	30M~50M	60M
Camera LED lights	12pcs	12pcs	12pcs	12pcs	12pcs	12pcs
Battery	6000mAh	6000mAh	4500mAh	4500mAh	4500mAh	4500mAh
Remote	-	-	-	-	-	-
WIFI	-	-	-	-	-	-
Distance Counter	-	-	✔	-	-	✔
Self Leveling	✔	✔	✔	✔	✔	✔
512Hz Transmitter	✔	✔	✔	✔	✔	✔
512Hz Locator	✔	-	✔	-	-	✔
Storage Card	Up to 64GB (8GB included)	Up to 64GB (8GB included)	Up to 64GB (32GB included)	Up to 256GB (32GB included)	Up to 256GB (32GB included)	Up to 64GB (32GB included)

Octopusscan OS09D1 Sewer Inspection Camera

$439.00 $1,299.99

Why Choose This Product

Octopusscan OS10DZ Sewer Inspection Camera – 512Hz Locator, Self-Leveling & 10" IPS Screen, 196ft Cable - Octopusscan

512 Hz Precision Locator

The built‑in 512 Hz transmitter in the camera probe syncs with the included handheld locator, letting you trace and pinpoint your sewer camera head underground—no guesswork, no extra digging.

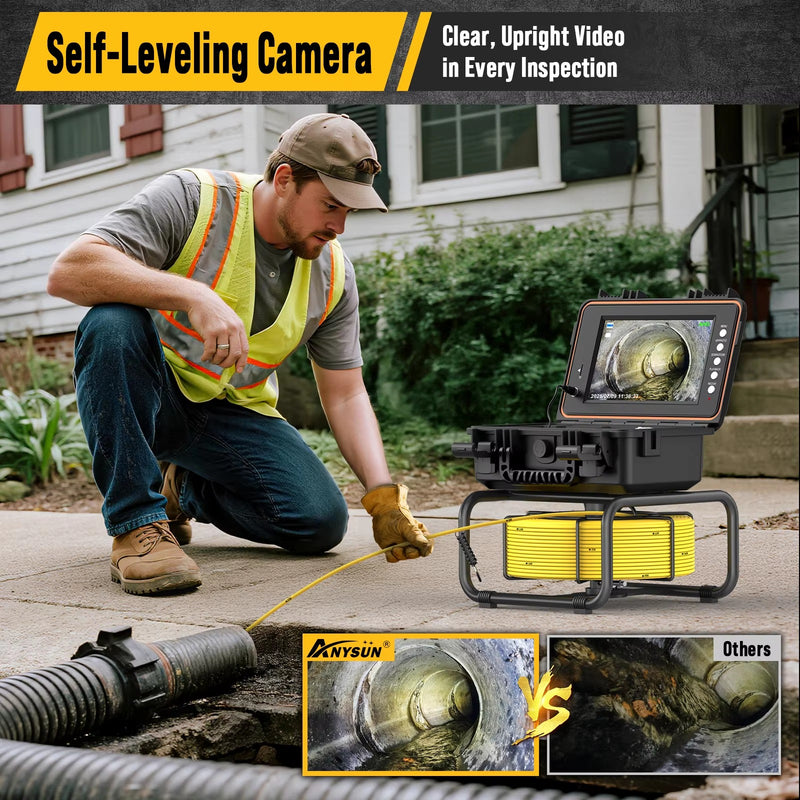

Always Upright, Always Clear

Octopusscan's pipe inspection camera features a self- leveling camera head with an internal gravity sensor, ensuring your pipe inspection feed remains perfectly upright. Pros and DIY homeowners get clear, properly oriented visuals—no tilting or guesswork—making sewer camera inspections faster and more accurate.

Recording and zooming in on every detail

Act as your own video inspection expert: one- touch video/photo capture on the bright 7"/9"/13"HD color screen lets you document findings instantly.

Up to 5 × digital zoom

Helps you spot cracks, blockages, and leaks deep inside sewers, drains, chimneys, or HVAC ducts with pinpoint accuracy.

Bright, wide, and built to last

With 12 adjustable LEDs and a 140° wide-angle lens, this camera lights up dark pipes and reveals more in every pass. IP68 waterproofing lets it thrive in wet, harsh environments—from underground lines to industrial conduits.

98. 4 ft durable cable and easy- reel storage

The tough 30 m cable offers extended reach into long pipes and deep wells. The convenient reel keeps your plumbing inspection camera organized and knot- free, making inspections quicker.

Wide application

From sinks to sewer lines, Octopusscan does it all. Find lost items, check AC lines, and scan tight spots—one tough tool for every job.

To overcome "battery anxiety

Rechargeable 45000 m Ah battery, fast charge, long-lasting performance
